Kumaş Baskı Makinesi
AVETEX 1316E – Yapay Zeka Görsel Konum Kamerası ile Otomatik Tarama ve Baskı. Çarpışma Önleyici Cihazlar ve Statik Elektrik Gidericiler
Uygulama Şeması

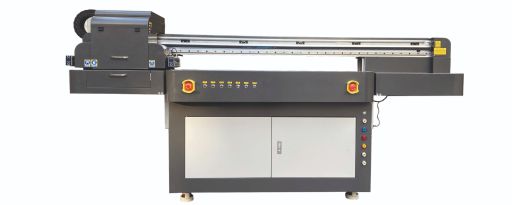

1316E UV PRINTER SPECIFICATIONS
| Model | 1316E UV PRINTER |
|---|---|
| Printhead | EPSON I3200 / XP600 / RICOH / TOSHIBA Head |
| Print Head Number | Max 4 heads |
| Color Set | CMYK; CMYK+W; CMYK+CMYK; CMYK+W+V |
| Print Width | 1300mm x 1600mm / 4*5ft |
| Print Speed (i3200 heads) | 4PASS 10 sqm/h 6PASS 7 sqm/h 8PASS 5 sqm/h |
| Print Direction | Unidirection / Bidirection |
| Media Type | Glass, Acrylic, Wood, Ceramic, Metal Sheet, PVC Sheet, Plastic, 3C product etc. |
| Media Thickness | Max. 100 mm |
| Ink Type | UV Curing Ink (None VOC) |
| Special Ink | Optional White Ink or Varnish |
| Curing System | LED Curing System |
| File Format | TIFF / JPEG / POSTSCRIPT3 / PDF |
| RIP Software | Riprint / Unitedfancy / Photoprint |
| Data Connector | USB3.0 / LAN |
| Power | 220VAC (±10%) Single Phase, 50/60 HZ |
| Power Consumption | 2.5 KW |
| Machine Size / N.W | 2.56 m x 2.2 m x 1.3 m, 800 kgs |
| Packing Size / G.W | 2.8 m x 2.3 m x 1.5 m, 900 kgs |
| Environment Requirement | Separated, clean, low dust, well-ventilated environment Working Temperature: 20°C–28°C Relative humidity: 40%–60% |
