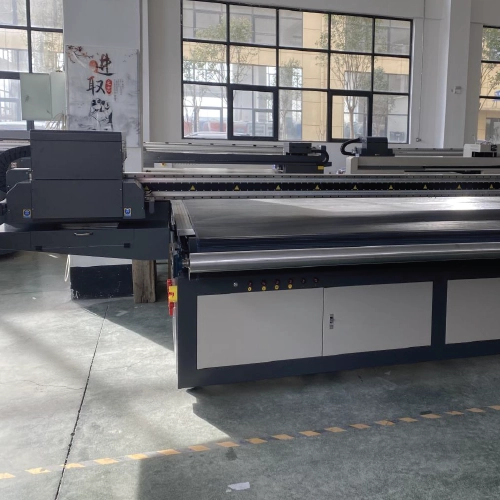

AVETEX 3325H
| Model | 3325H FLAT UV PRINTER |
|---|---|
| Printhead | Industry Grade Ricoh GEN5 / GEN6 head |
| Print Head Number | Max 8 heads |
| Color Set | CMYK; CMYK+W; CMYK+CMYK; CMYK+W+V; CMYK+W+CMYK |
| Print Size | 3300mm x 2500mm; (Hybrid: Flat mode - 3300mm x 2500mm + Roll mode - 3200mm) |
| Print Speed (G5 heads) | 4PASS 15 sqm/h 6PASS 12 sqm/h 8PASS 8 sqm/h |
| Print Speed (G6 heads, Maglev) | 4PASS 25 sqm/h 6PASS 20 sqm/h 8PASS 15 sqm/h |
| Print Direction | Unidirection / Bidirection |
| Media Type | Glass, Acrylic, Wood, Ceramic, Metal Sheet, PVC Sheet, Plastic, 3C product etc. |
| Media Thickness | Max. 100 mm |
| Ink Type | UV Curing Ink (None VOC) |
| Special Ink | Optional White Ink or Varnish |
| Curing System | LED Curing System |
| File Format | TIFF / JPEG / POSTSCRIPT3 / PDF |
| RIP Software | Riprint / Unitedfancy |
| Data Connector | USB3.0 |
| Power | 220VAC (±10%) Single Phase, 50/60 HZ |
| Power Consumption | 5.5 KW |
| Machine Size / N.W | 5.3 m x 3.3 m x 1.45 m, 1800 kgs; Hybrid: 5.3 m x 3.7 m x 1.45 m, 2000 kgs |
| Packing Size / G.W | 3.6 m x 2 m x 1.01 m + 5.52 m x 2.2 m x 1.53 m, 2700 kgs / 2900 kgs |
| Environment Requirement | Separated, clean, low dust, well-ventilated environment Working Temperature: 20°C–28°C Relative humidity: 40%–60% |
